4-20mA Pressure Transmitter
The 4-20 mA pressure transmitter is easily adaptable to telemetry / SCADA systems, digital displays and third-party data loggers.
Description
The 4-20 mA pressure transmitter is easily adaptable to telemetry / SCADA systems, digital displays and third-party data loggers. The 4-20mA provides highly accurate water level measurements for a wide variety of applications. A two-wire 4-20 mA loop is used with our pressure transmitter, which is the most widely used signal transmission for transducers in industrial environments.
- The vented cable provides real-time barometric compensation.
- Simple two-wire connection.
- The output signal is compatible with most telemetry, SCADA and PLC systems.
- High noise immunity over long cable runs.
- Wide supply voltage range (7.5VDC-35VDC).
- Highly accurate water level measurements.
- Reverse polarity protected.

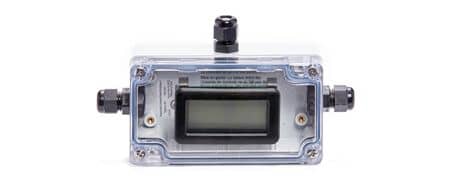

4-20mA Digital Display – PN#5031
The 4-20 mA digital display unit provides real-time readings of the water height above the transducer in metres or feet. Other units of measurement are available on request. The display is powered by the loop, so there is no need for an additional power supply.
