Description

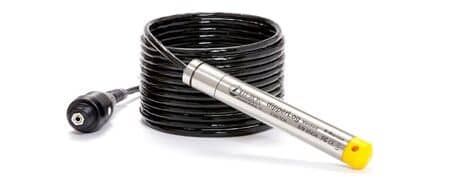

The dipperLog NANO is a low-cost, accurate groundwater level logger. It is used by homeowners, hydrogeologists and other groundwater professionals who require a durable, reliable and cost-effective solution for long-term monitoring of groundwater levels and temperature in wells, piezometers, boreholes and surface waters . The Heron logger is also ideal for short-term pumping tests and slug tests, or for wetland and tidal studies.

With intuitive, easy-to-use software, the dipperLog NANO is simple to start up and data retrieval is quick and easy.

The Heron Instruments dipperLog NANO system allows users to enhance their data logging projects with a family of compatible, affordable accessories.

Available pressure ranges:

dipperLog NANO B (10 m / 30 ft)
dipperLog NANO C (30 m / 100 ft)
dipperLog NANO D (60 m / 200 ft)
dipperLog NANO E (120 m / 400 ft)

Memory: 32,000 data sets (water depth and temperature)
Download speed: 32,000 data sets in 90 seconds
Battery – life of approx. 7 years based on 5-minute reading intervals
Calibration certificate with every logger
Anti-fouling screen

Transducer	Piezoresistive silicon 316LSS
Construction material	316 stainless steel and Delrin combination (corrosion-resistant thermoplastic)
Accuracy (typical)	0.05% net FS, for pressure ranges> 120 m / 400 ft 0.25% net FS
Accuracy (maximum error)	0.1% net FS, for pressure ranges> 120 m / 400 ft 0.5% net FS
Hydrostatic depth range	120 m / 400 ft
Accuracy (typical)	0.05% net FS
Accuracy (maximum error)	0.1% net FS
Resolution	0.006% net FS
Temperature sensor	IC temperature sensor
Temperature accuracy	+/- 0.5 Deg. C
Resolution	0.0625 Deg. C
Transducer temperature compensation range	0 Deg. C to + 50 Deg. C
Temperature response time	10 seconds
Battery type	3.6 volt lithium
Battery life	Approx. 7 years at 5-minute readings
Clock accuracy	+/- 1 minute per month
Long-term stability	+/- 0.2% FS / year
Operating temperature	-20 Deg. C to +80 Deg. C
Memory	Non-volatile EEPROM
Max. readings between downloads	32,000 Sets – Pressure and temperature
Communication	USB, RS232, SDI 12
Download speed	1.5 minutes (32,000 data sets)
Dimensions	100 mm (4 inches) long x 22.5 mm (0.875 inches) in diameter
Weight	135grams Effective S.G 4
Materials	Stainless steel, Viton, Engineering thermoplastic (Delrin)
Sampling modes	Linear – Real Time – ‘Log Time’ (see below)
Logging intervals	Seconds, minutes, hours – Minimum 1 sec, max. 255 h
Download speed	19.2 k / bits per second
Units of measurement	ft / M of water (head) in normal mode. Any unit when saved as a CSV file
Anti-fouling screen	Weight 22 g, length 50 mm, diameter 25 mm, Material Phosphor Bronze (98% copper)
Note: In ‘Log Time’ mode, dipperLog NANO increases the readings from 1 second by an additional 1 second for 255 readings. The final reading interval is 4 minutes and 14 seconds and the logger stops logging. This mode logs a total of 9 hours before stopping.
Barometric compensation	A real-time reading taken during the launch procedure and used for all readings unless a barLog is used. Automatic compensation when a designated barLog is used. Manual compensation in Excel. Self-compensating when the vented version is used.
Direct-read cable	3.5 mm diameter polyurethane jacket with 3 stranded tinned copper conductors insulated with Teflon Mylar. Braided copper shield, reinforced with stretch-resistant Kevlar. Weight 12 grams per metre.
Vented cable	6.25 mm diameter jacketed polyurethane. 4 insulated T.C. conductors. 1 stranded T.C drain line, 2.5 mm nylon vent tube. Reinforced with Kevlar and an aluminium shield. Weight 34 grams per metre.
Limited warranty	1 year

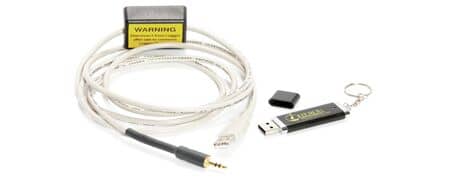

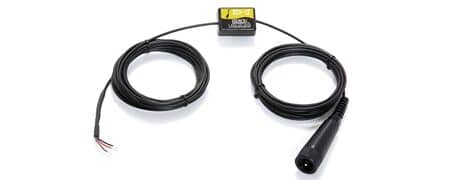

PC communication cable - PN # 5009 + Software - PN # 5008

The PC communication cable is required to set up, download and reprogram the dipperLog NANO to a PC. The software is included or can be downloaded from our website. One PC communication cable is required for each PC user.

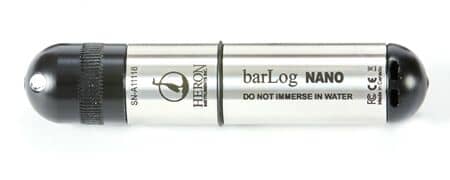

barLog NANO – PN# 5116

A barometric logger is used to automatically compensate the readings stored in the dipperLog NANO for changes in barometric pressure (for non-vented versions). The barLog NANO is recommended for barometric compensation, for long-term monitoring or where more than one logger is deployed within a 20 km radius

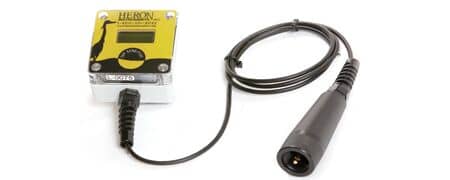

tapNtell Surface-Mount Display – PN # 5020

The tapNtell is a weatherproof display for the dipperLog NANO. The tapered connector end of the tapNtell connects to the direct-read well head, and the surface-mount display unit can be attached to the side of the well cover or pumping station (any solid surface). The tapNtell provides an instant, real-time reading of water level and temperature at the touch of a finger.

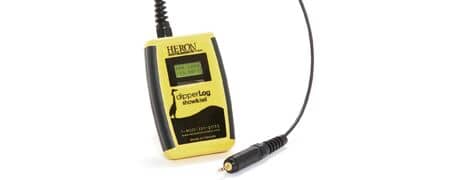

showNtell Hand Held Display – PN# 5018

The showNtell is a portable hand held display unit for the dipperLog well head readout version. The showNtell can be carried from well to well, to give an instant real time reading of water level and temperature by simply plugging into the direct read well head. The showNtell does not download or store the data from the logger.

SDI-12 Interface Cable – PN# 5021

The SDI-12 system allows dipperLog NANO data to be accessed from remote locations by a central computer without site visits. Sensors can be swapped without reprogramming the data logger with calibration or other information. Power is supplied to the sensors through a third-party device that allows telemetric data reading.
Operating voltage (DC) :: 7.5 – 35 VDC
Supply current (standby) :: 10μA
Supply current (active) :: 1.5mA

Locking caps for piezometers – PN# 5007

The nylon well cap is airtight and has a tamper-proof hinge, ideal for deploying the dipperLog NANO in a piezometer.

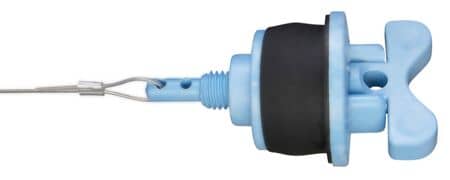

Plug – PN# 5006

The nylon expansion cap is an airtight sealing plug, ideal for deploying the suspended version of the dipperLog NANO in a piezometer.

dipperLog NANO

Description

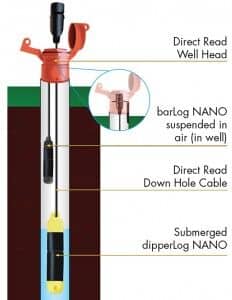

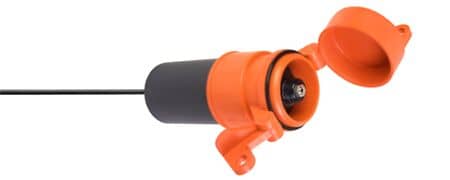

Piezometer head readout version: Leave in the piezometer to read - direct read

Vented version: keep in the piezometer to read

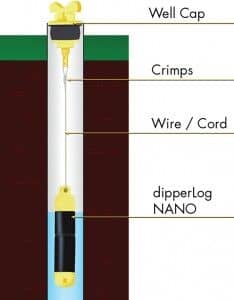

Suspended version: remove from the piezometer to read

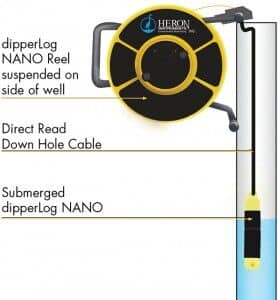

Portable reel version
