Vented logger
The Vented dipperLog NANO is a reliable and cost-effective solution for long-term monitoring of groundwater levels and temperature in wells, piezometers, boreholes and surface waters.
Description
The Vented dipperLog NANO is a reliable and cost-effective solution for long-term monitoring of groundwater levels and temperature in wells, piezometers, boreholes and surface waters. The Heron vented logger is also ideal for short-term pumping tests and slug tests, or for wetland and tidal studies.
The direct-read cable with built-in vent tube allows the logger to automatically compensate for changes in barometric pressure. The sintered Teflon air filter in the direct-read head prevents moisture from building up in the vent tube. The unique filter design requires no replacement.
Please note that to request a quote, this product can be found on the dipperLog NANO page (under Deployment Options). Click here to find the software and specifications.
- Memory: 32,000 data sets (water depth and temperature)
- Download speed: 32,000 data sets in 90 seconds
- Battery – life of approx. 7 years based on 5-minute reading intervals
- Calibration certificate with every logger
- Anti-fouling screen

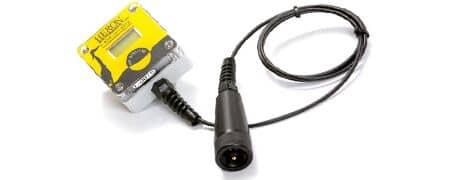

tapNtell Sensor for measuring water level and temperature
The tapNtell and its companion unit, the showNtell, are small water temperature sensors and water level meters that give you an instant, real-time reading of the water height and temperature above the transducer. These units turn the dipperLog NANO into a convenient tool for getting an instant reading from the logger without having to bring a computer to site.

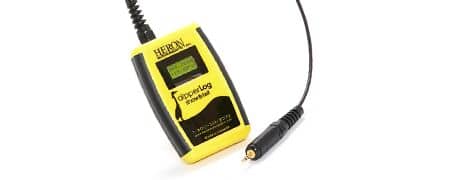

showNtell
The showNtell and its companion unit, the tapNtell, are small water temperature and level sensors that give you an instant, real-time reading of the water height and temperature above the transducer. These units turn the dipperLog NANO into a convenient tool for getting an instant reading from the logger without having to bring a computer to site.

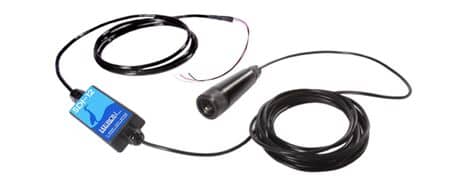

SDI-12 Enables global communication with the dipperLog NANO
One of the factors that makes our 1,200 baud serial digital interface (SDI-12) especially useful is that it runs on a battery but has negligible current consumption. This allows it to match the service life of the dipperLog NANO.
Construction material: ABS / Delrin
Operating temperature: -20 ̊C to +85 ̊C
Operating voltage (DC): 7.5 – 35VDC
Supply current (standby): 10μA
Supply current (active): 1.5mA
Weight: 200g
